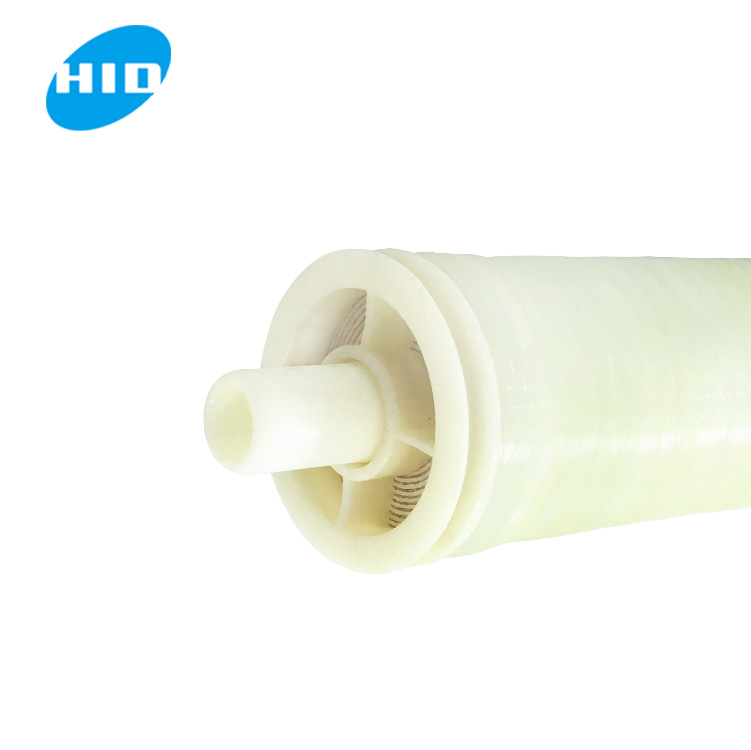

RO Membrane 2540

Short Description:

RO Membrane 2540 series of industrial RO membranes are made of HID developed polyamide composite film, characterized by low operating pressure, higher flow, and improves desalination. They’re employed drinking water treatment plants in municipal drinking water supply, various industrial water purification, seawater desalination project, etc.

Brand Name: HID

Desalination: 99%

OEM/ODM: Accept

Manufacturer: Yes

Delivery Time: 2-7 days

Shipping Support: Express / Sea/ Land/ Air freight

Place of Origin: Jiangsu, China

E-mail: info@ro-hid.com

Model: RT-2540HF

Send email to us Download as PDF

Product Detail

APPLICATION

Company Profile

Product Tags

RO Membrane 2540

HID^TMRO Membrane 2540 ranks the best brands in China among the RO membrane industry. Industrial RO Membrane has won the trust of thousands of families for feeding the reliable purified water over 10 years. Each membrane is made of HID developed & pre-examined sheet and goes through stringent making processes as well as in-house quality inspection & testing before delivery. HID Membrane has been certified by SGS & China Jiangsu Sanitation Bureau wrt drinking water membrane elements.

RO Membrane 2540 Model & Performance:

Model		RT-2521 HF	RT-2540 HF	RT-4021 HF	RT-4040 HF	RT-8040 HF
Performance	Stable Desalination %	98	98	98	99	99.3
	Min. Desalination %	97	97	97	98	98.5
	Mean Permeable Flow GPD (L/d)	380(1300)	780(2800)	1000(3400)	2800(9500)	11000(41000)
	Active Film Area ft2(m2)	13 (1.2)	28 (2.6)	36 (3.3)	97 (9)	400 (37)
Test Conditions	Pressure	100psi(0.7Mpa)			225psi(1.55Mpa)
	Water Temp.	25℃			25℃
	Concentration(NaCl)	2000ppm			2000ppm
	Water PH	6.5 to 7.5			6.5 to 7.5
	Recovery Rate %	15			15
Operating Conditions	Max. Operating Pressure	600psi(4.2Mpa)			600psi(4.2Mpa)
	Max. Feed Water Temp.	45℃			45℃
	Max. Feed Water Silt Density Index (SDI)	5			5
	Feed Water Chlorine Tolerance	< 0.1ppm			< 0.1ppm
	Feed Water PH Range, Continuous Operation	3 to 10			3 to 10
	Feed Water PH Range, Short-Term Cleaning	2 to 12			2 to 12
	Max. Pressure Drop of Single Membrane	15psi(0.1Mpa)			15psi (0.1Mpa)

1. Permeate flow rate and salt rejection is based on testing conditions: 25℃, PH 7.5, 20% recovery.
2. Stabilized salt rejection is generally achieved within 24-48 hours of continuous use, depending upon feedwater characteristics and operating conditions.

Start-up Data of Model ULP26-4040

(test temp. 25℃; pressure at 150psi; TDS at 1500ppm)

(test temp. 25℃; TDS at 1500ppm)

Previous: RO Membrane 2521HF

Next: 300 gpd Membrane Reverse Osmosis Commercial RO Membrane TFC-3012-300 GPD

HID RO Membranes are widely used in ultra-pure water, process pure water, cooling tower water, boiler water supply, pure water, throughout the electronics industry, optoelectronic industry, machinery manufacturing, fine chemical industry, medical pharmaceutical, food, and beverage industry, surface coating, and many other industries.
