OEM Manufacturer Reverse Osmosis Systems - Professional Factory for 125gpd Residential RO Element – HID Membrane
OEM Manufacturer Reverse Osmosis Systems - Professional Factory for 125gpd Residential RO Element – HID Membrane Detail:
Our growth depends on the superior equipment ,exceptional talents and continuously strengthened technology forces for Professional Factory for 125gpd Residential RO Element, Please don’t hesitate to contact us if you are interested in our products. We firmly believe our products will make you satisfied.
Our growth depends on the superior equipment ,exceptional talents and continuously strengthened technology forces for Ro Element, Due to the stability of our merchandise, timely supply and our sincere service, we have been able to sell our products and solutions not only over the domestic market, but also exported to countries and regions, including the Middle East, Asia, Europe and other countries and regions. At the same time, we also undertake OEM and ODM orders. We’ll do our best to serve your company, and establish a successful and friendly cooperation with you.
HIDTM Residential Membrane ranks the best brands in China among RO membrane industry. It has won the trust of thousands of families for feeding the reliable purified water over 10 years. Each membrane is made of HID developed & pre-examined sheet and goes through stringent making processes as well as in-house quality inspection & testing before delivery. HID Membrane has been certified by SGS & China Jiangsu Sanitation Bureau wrt drinking water membrane elements.
| Model | TFC-1810-50 | TFC-1810-75 | TFC-1810-100 | TFC-2012-125 | TFC-2012-150 | TFC-2012- 200 | |
| TFC-1812-50 | TFC-1812-75 | TFC-2012-100 | |||||
| Perfor-mance | Stable Desalination % | 97 | 97 | 97 | 97 | 97 | 97 |
| Min. Desalination % | 96 | 96 | 96 | 96 | 96 | 96 | |
| Mean Permeable Flow GPD (L/d) | 50 (204) | 75 (281) | 100 (380) | 125 (478) | 150 (567.75) | 200(760) | |
| Active Film Area ft2(m2) | 3.5 (0.32) | 4.2 (0.38) | 5.0 (0.46) | 5.0 (0.50) | 6.0 (0.8) | 10.33 (0.96) | |
| Test Conditions | Pressure | 65psi (0.45Mpa) | |||||
| Water Temp. | 25℃ | ||||||
| Concentration(NaCl) | 500ppm | ||||||
| Water PH | 6.5 to 7.5 | ||||||
| Recovery Rate % | 15 | ||||||
| Operating Conditions | Max. Operating Pressure | 200psi (2.0Mpa) | |||||
| Max. Feed Water Temp. | 45℃ | ||||||
| Max. Feed Water Silt Density Index (SDI) | 5 | ||||||
| Feed Water Chlorine Tolerance | < 0.1 mg/l | ||||||
| Feed Water PH Range, Continuous Operation | 3 to 10 | ||||||
| Feed Water PH Range, Short-Term Cleaning | 2 to 11 | ||||||
| Max. Pressure Drop of Single Membrane | 10psi (0.07Mpa) | ||||||
NOTE: The produced water amount listed in the table is an average value, compared with the standard value, the difference of the minimum amount of water produced by a single membrane does not exceed ± 15%.
| Model No. | Maximum Operating Temperature |
Maximum Operating Pressure |
Feed Water PH Range, continuous operation |
Maximum Feed Water Turbidity |
Maximum Feed Water SDI |
Chlorine Tolerance |
| TFC-1812-50 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |
| TFC-1812-75 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |
| TFC-2012-100 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |
| TFC-2012-125 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |
| TFC-2012-150 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |
| TFC-2012-200 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |

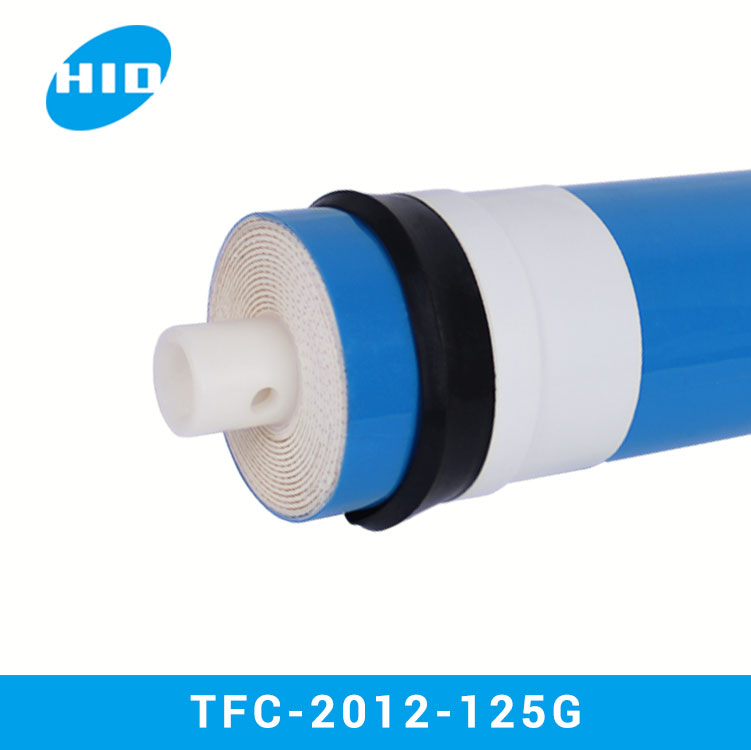

Product detail pictures:
