OEM Manufacturer Magnetic Water Treatment - Chinese wholesale Quick-Connect Water Saving RO Membrane 150gpd ro membrane price – HID Membrane
OEM Manufacturer Magnetic Water Treatment - Chinese wholesale Quick-Connect Water Saving RO Membrane 150gpd ro membrane price – HID Membrane Detail:
Our solutions are greatly recognized and reliable by customers and will fulfill continuously altering financial and social requirements for Chinese wholesale Quick-Connect Water Saving RO Membrane 150gpd ro membrane price, We warmly welcome your participation dependant on mutual added benefits within the in close proximity to future.
Our solutions are greatly recognized and reliable by customers and will fulfill continuously altering financial and social requirements for 150gpd ro membrane price, With a team of experienced and knowledgeable personnel, our market covers South America, the USA, the Mid East, and North Africa. Many customers have become our friends after good cooperation with us. If you have the requirement for any of our merchandise, you should contact us now. We have been looking forward to hearing from you soon.
HIDTM Residential Membrane ranks the best brands in China among RO membrane industry. It has won the trust of thousands of families for feeding the reliable purified water over 10 years. Each membrane is made of HID developed & pre-examined sheet and goes through stringent making processes as well as in-house quality inspection & testing before delivery. HID Membrane has been certified by SGS & China Jiangsu Sanitation Bureau wrt drinking water membrane elements.
| Model | TFC-1810-50 | TFC-1810-75 | TFC-1810-100 | TFC-2012-125 | TFC-2012-150 | TFC-2012- 200 | |
| TFC-1812-50 | TFC-1812-75 | TFC-2012-100 | |||||
| Perfor-mance | Stable Desalination % | 97 | 97 | 97 | 97 | 97 | 97 |
| Min. Desalination % | 96 | 96 | 96 | 96 | 96 | 96 | |
| Mean Permeable Flow GPD (L/d) | 50 (204) | 75 (281) | 100 (380) | 125 (478) | 150 (567.75) | 200(760) | |
| Active Film Area ft2(m2) | 3.5 (0.32) | 4.2 (0.38) | 5.0 (0.46) | 5.0 (0.50) | 6.0 (0.8) | 10.33 (0.96) | |
| Test Conditions | Pressure | 65psi (0.45Mpa) | |||||
| Water Temp. | 25℃ | ||||||
| Concentration(NaCl) | 500ppm | ||||||
| Water PH | 6.5 to 7.5 | ||||||
| Recovery Rate % | 15 | ||||||
| Operating Conditions | Max. Operating Pressure | 200psi (2.0Mpa) | |||||
| Max. Feed Water Temp. | 45℃ | ||||||
| Max. Feed Water Silt Density Index (SDI) | 5 | ||||||
| Feed Water Chlorine Tolerance | < 0.1 mg/l | ||||||
| Feed Water PH Range, Continuous Operation | 3 to 10 | ||||||
| Feed Water PH Range, Short-Term Cleaning | 2 to 11 | ||||||
| Max. Pressure Drop of Single Membrane | 10psi (0.07Mpa) | ||||||
NOTE: The produced water amount listed in the table is an average value, compared with the standard value, the difference of the minimum amount of water produced by a single membrane does not exceed ± 15%.
| Model No. | Maximum Operating Temperature |
Maximum Operating Pressure |
Feed Water PH Range, continuous operation |
Maximum Feed Water Turbidity |
Maximum Feed Water SDI |
Chlorine Tolerance |
| TFC-1812-50 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |
| TFC-1812-75 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |
| TFC-2012-100 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |
| TFC-2012-125 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |
| TFC-2012-150 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |
| TFC-2012-200 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |

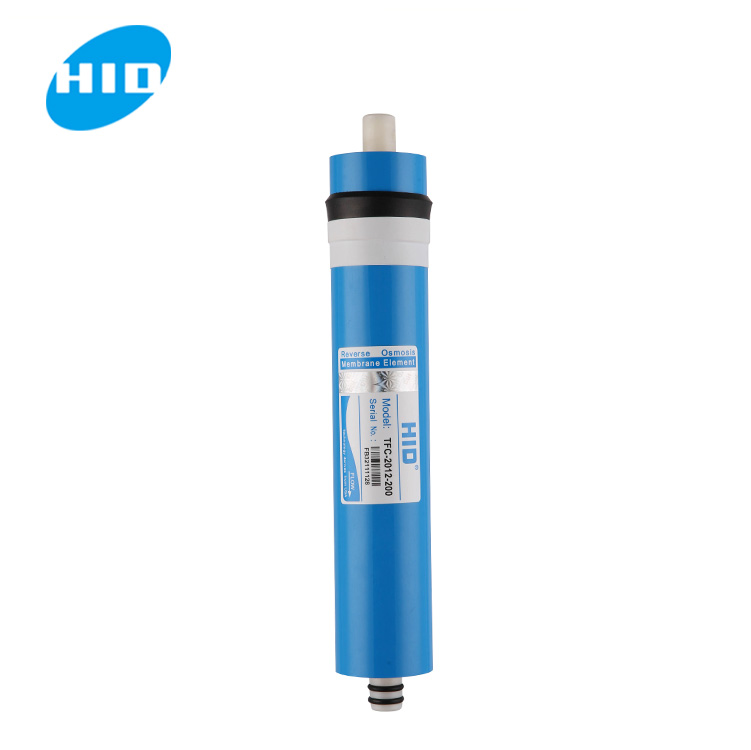

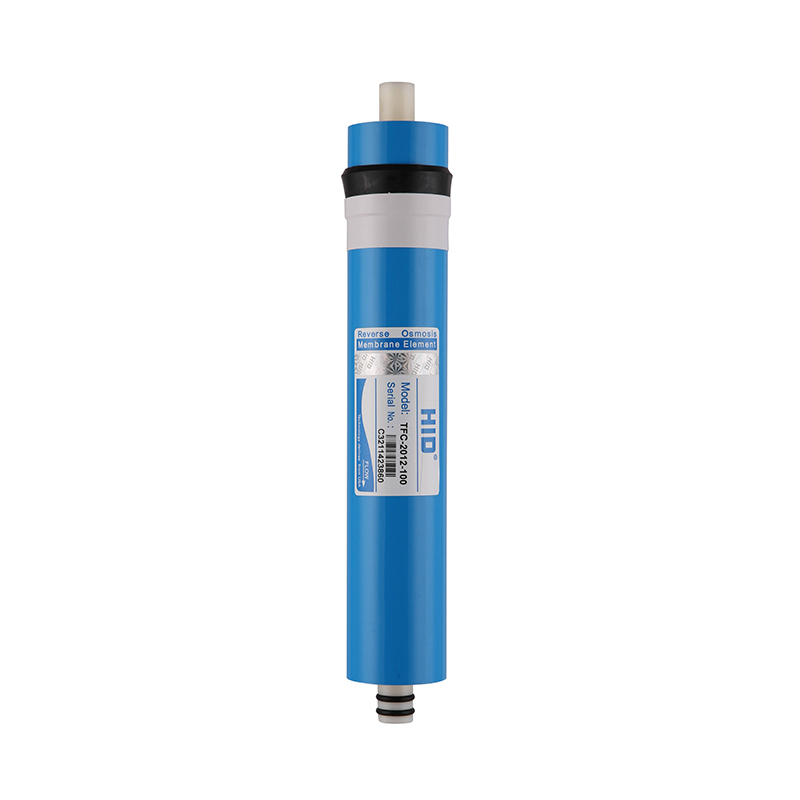

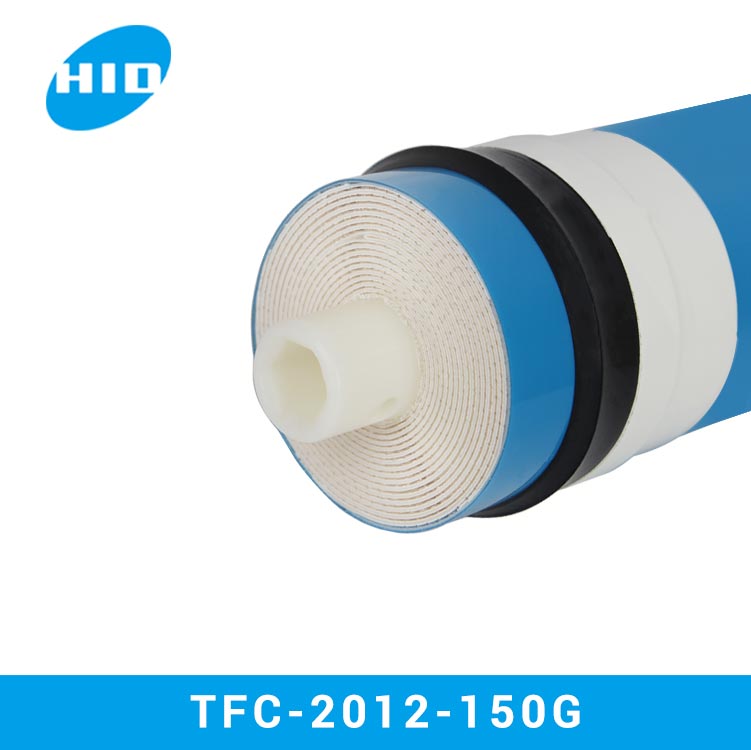

Product detail pictures:
Related Product Guide:
OEM Manufacturer Magnetic Water Treatment - Chinese wholesale Quick-Connect Water Saving RO Membrane 150gpd ro membrane price – HID Membrane, The product will supply to all over the world, such as: , , ,
