Hot Sale for Di Water System - RO Elements Membrane High Salt Rejection 99.5% Capacity For Reverse Osmosis System – HID Membrane
Hot Sale for Di Water System - RO Elements Membrane High Salt Rejection 99.5% Capacity For Reverse Osmosis System – HID Membrane Detail:
We stick to our enterprise spirit of “Quality, Performance, Innovation and Integrity”. We purpose to create a lot more price for our prospects with our rich resources, innovative machinery, experienced workers and great products and services for RO Elements Membrane High Salt Rejection 99.5% Capacity For Reverse Osmosis System, We, with great passion and faithfulness, are ready to give you with best companies and striding ahead with you to create a vibrant foreseeable future.
We stick to our enterprise spirit of “Quality, Performance, Innovation and Integrity”. We purpose to create a lot more price for our prospects with our rich resources, innovative machinery, experienced workers and great products and services for RO Elements Membrane, Now, we are trying to enter new markets where we do not have a presence and developing the markets we have now the already penetrated. On account of superior quality and competitive price , we’ll be the market leader, please don??￥t hesitate to contact us by phone or email, if you are interested in any of our goods.
Reverse Osmosis (RO) Membrane 100 GPD
HIDTM Residential Membrane ranks the best brands in China among the RO membrane industry. Reverse Osmosis (RO) Membrane 100 GPD has won the trust of thousands of families for feeding the reliable purified water over 10 years. Each membrane is made of HID developed & pre-examined sheet and goes through stringent making processes as well as in-house quality inspection & testing before delivery. HID Membrane has been certified by SGS & China Jiangsu Sanitation Bureau wrt drinking water membrane elements.
| Model | TFC-1810-50 | TFC-1810-75 | TFC-1810-100 | TFC-2012-125 | TFC-2012-150 | TFC-2012- 200 | |
| TFC-1812-50 | TFC-1812-75 | TFC-2012-100 | |||||
| Perfor-mance | Stable Desalination % | 97 | 97 | 97 | 97 | 97 | 97 |
| Min. Desalination % | 96 | 96 | 96 | 96 | 96 | 96 | |
| Mean Permeable Flow GPD (L/d) | 50 (204) | 75 (281) | 100 (380) | 125 (478) | 150 (567.75) | 200(760) | |
| Active Film Area ft2(m2) | 3.5 (0.32) | 4.2 (0.38) | 5.0 (0.46) | 5.0 (0.50) | 6.0 (0.8) | 10.33 (0.96) | |
| Test Conditions | Pressure | 65psi (0.45Mpa) | |||||
| Water Temp. | 25℃ | ||||||
| Concentration(NaCl) | 500ppm | ||||||
| Water PH | 6.5 to 7.5 | ||||||
| Recovery Rate % | 15 | ||||||
| Operating Conditions | Max. Operating Pressure | 200psi (2.0Mpa) | |||||
| Max. Feed Water Temp. | 45℃ | ||||||
| Max. Feed Water Silt Density Index (SDI) | 5 | ||||||
| Feed Water Chlorine Tolerance | < 0.1 mg/l | ||||||
| Feed Water PH Range, Continuous Operation | 3 to 10 | ||||||
| Feed Water PH Range, Short-Term Cleaning | 2 to 11 | ||||||
| Max. Pressure Drop of Single Membrane | 10psi (0.07Mpa) | ||||||
NOTE: The produced water amount listed in the table is an average value, compared with the standard value, the difference of the minimum amount of water produced by a single membrane does not exceed ± 15%.
| Model No. | Maximum Operating Temperature |
Maximum Operating Pressure |
Feed Water PH Range, continuous operation |
Maximum Feed Water Turbidity |
Maximum Feed Water SDI |
Chlorine Tolerance |
| TFC-1812-50 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |
| TFC-1812-75 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |
| TFC-2012-100 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |
| TFC-2012-125 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |
| TFC-2012-150 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |
| TFC-2012-200 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |

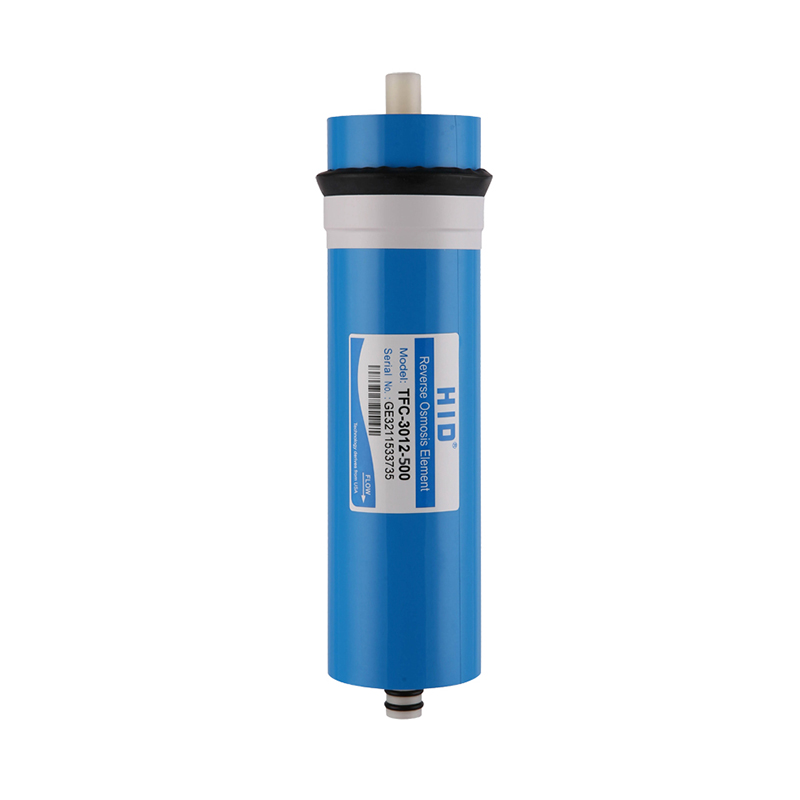

Product detail pictures:
Related Product Guide:
Hot Sale for Di Water System - RO Elements Membrane High Salt Rejection 99.5% Capacity For Reverse Osmosis System – HID Membrane, The product will supply to all over the world, such as: , , ,
