It is a good way to boost our products and solutions and repair. Our mission is always to establish artistic products and solutions to consumers having a excellent expertise for Domestic Water Filter RO System Reverse Osmosis Membrane 3012 500G, For more data, please send email to us. We’re searching forwards the opportunity to assistance you.
It is a good way to boost our products and solutions and repair. Our mission is always to establish artistic products and solutions to consumers having a excellent expertise for Reverse Osmosis Membrane, RO Membrane, We’ve got customers from more than 20 countries and our reputation has been recognized by our esteemed customers. Never-ending improvement and striving for 0% deficiency are our two main quality policies. Must you want anything, don’t hesitate to contact us.

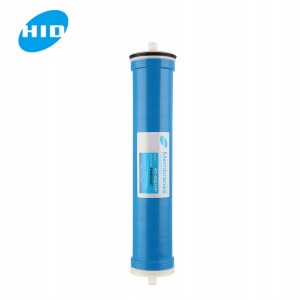

HIDTM Commercial Membrane ranks the best brands in China among the RO membrane industry. Membrane Filter Reverse Osmosis has won the trust of numerous clients for feeding the reliable purified water over 10 years. Each membrane is made of HID developed & pre-examined sheet and goes through stringent making processes as well as in-house quality inspection & testing before delivery. HID Membrane has been certified by SGS & China Jiangsu Sanitation Bureau wrt drinking water membrane elements.
Model No. | Min. Salt Rejection (%) | Stabilized Salt Rejection(%) | Permeate Flow Rate(gpd) | TestTemp. | Test Pressure | Test Water TDS |
TFC-3012-200 | 95 | 97 | 200 | 25℃ | 65psi | 500ppm |
TFC-3012-300 | 95 | 97 | 300 | 25℃ | 65psi | 500ppm |
TFC-3012-400 | 95 | 97 | 400 | 25℃ | 80psi | 500ppm |
TFC-3013-400 | 95 | 97 | 400 | 25℃ | 100psi | 500ppm |
TFC-3012-500 | 94 | 96 | 500 | 25℃ | 100psi | 500ppm |
TFC-3213-600 | 94 | 96 | 600 | 25℃ | 100psi | 500ppm |
TFC-3213-800 | 94 | 96 | 800 | 25℃ | 100psi | 500ppm |
1. Permeate flow rate and salt rejection is based on testing conditions: 25℃, PH 7.5, 20% recovery.
2. Stabilized salt rejection is generally achieved within 24-48 hours of continuous use, depending upon feedwater characteristics and operating conditions.
Model No. | Maximum Operating Temperature |
Maximum Operating Pressure |
Feed Water PH Range, continuous operation |
Maximum Feed Water Turbidity |
Maximum Feed Water SDI |
Chlorine Tolerance |
TFC-3012-200 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |
TFC-3012-300 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |
TFC-3012-400 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |
TFC-3013-400 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |
TFC-3012-500 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |
TFC-3213-600 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |
TFC-3213-800 | 45℃ | 200psi | 4-11 | 1NTU | 5 | <0.1ppm |
HID RO Membranes are widely used in ultra-pure water, process pure water, cooling tower water, boiler water supply, pure water, throughout the electronics industry, optoelectronic industry, machinery manufacturing, fine chemical industry, medical pharmaceutical, food, and beverage industry, surface coating, and many other industries.
